AJS · GROOVED PIPING
AJ560R / AJ560F
DIMENSIONS & SPECIFICATIONS

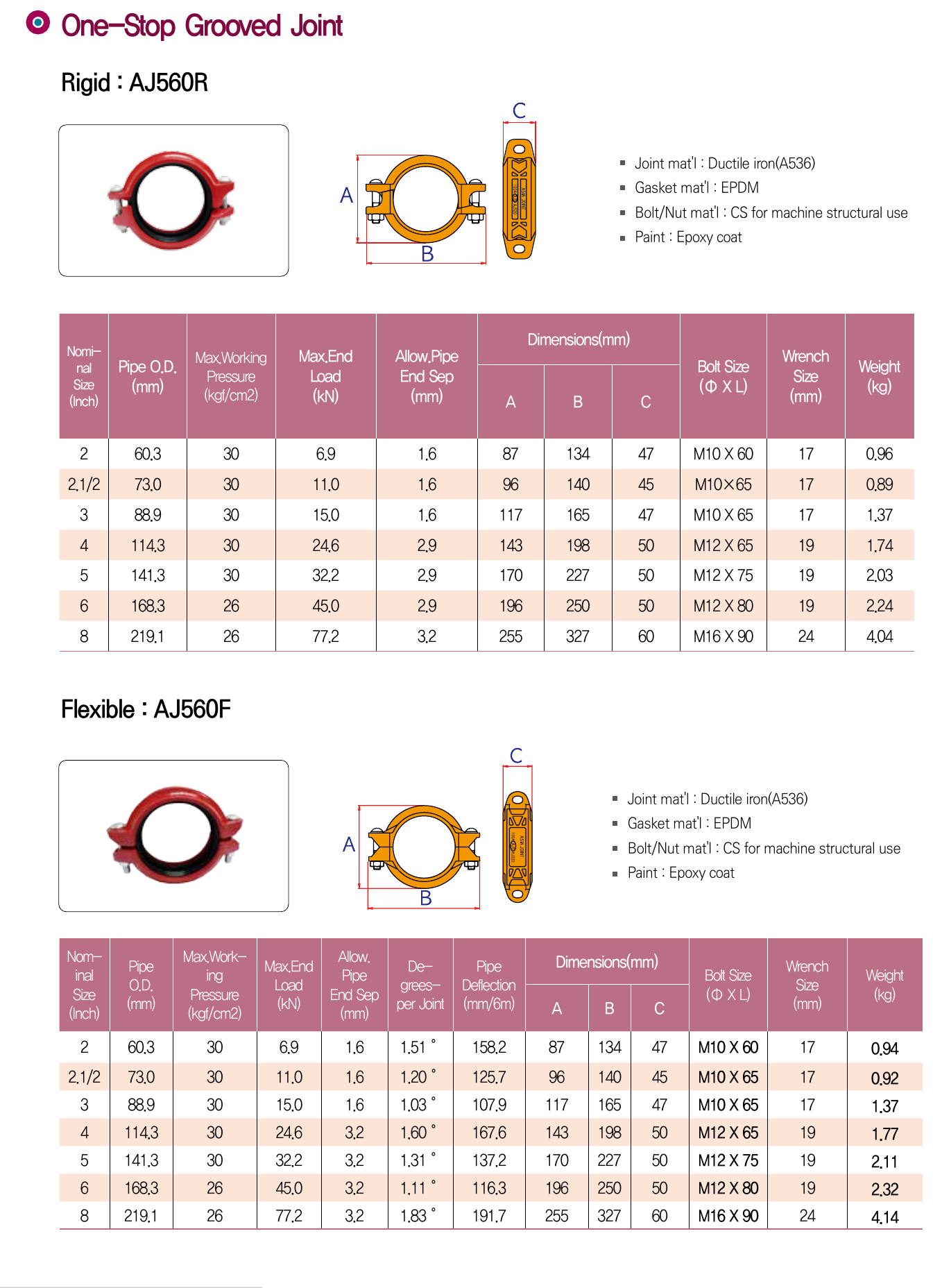

Dimensions & specifications
Scroll horizontally for wide tables. Dimensions, units and notes follow the original catalog.
