PROJECT
Goyang residential facility · mechanical-room connections

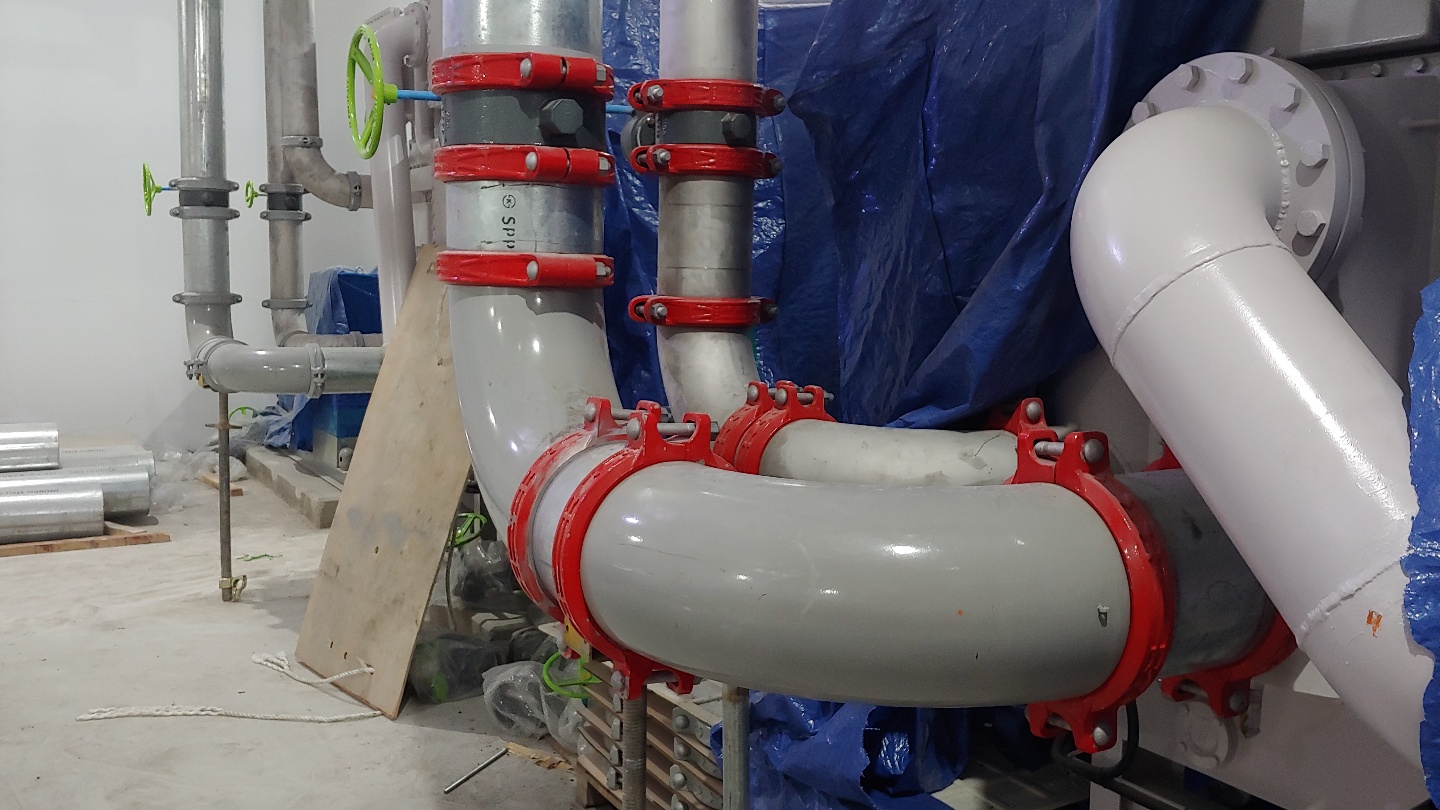

Installation photograph showing large-bore changes of direction and pipe connections in a mechanical room. Review pipe size, supports and maintenance clearances together.
Review products & technical references
Review pipe OD, design pressure, temperature, flow rate and equipment connection clearances.
The products below support review of similar piping applications. They do not identify installed models or establish certification or performance for the photographed installation.
| Document | Review reference | View | Save |
|---|---|---|---|
| TD-01 | Groove dimensions and pipe-end preparation | View ↗ | Download ↓ |
| WP-01 | Flexible coupling movement and vibration | View ↗ | Download ↓ |
| WP-02 | Loads, anchors and guides | View ↗ | Download ↓ |
| WP-04 | Fabricated valve construction and hydraulic review | View ↗ | Download ↓ |
These public review guides support selection and procurement. Use current approved model-specific instructions for installation.
Customer identities and exact site names are withheld. This reference introduces the locality, application and product family. Share your piping requirements for a model and specification review for your project.
LET’S CONNECT
Define your project requirements.
Submit the product specification, quantities and design conditions for technical and commercial review.
